University Cleanroom Maskless Lithography System RFQ Guide

Start with the shared-instrument mission

A North American university cleanroom usually buys capability for a community rather than a single experiment. The U.S. National Science Foundation describes its Major Research Instrumentation program in terms of access to multi-user scientific and engineering instrumentation, research and research training. NIH's current S10 instrumentation programs likewise frame capital equipment as shared infrastructure. Even when neither program funds the purchase, that shared-use logic is a strong procurement test: the instrument should support a defined portfolio of research and a sustainable operating model.

Write a one-page mission before writing the specification. Name the departments, principal user groups and external or industry users the facility expects to serve. Identify whether the priority is rapid prototype iteration, multilayer device fabrication, grayscale relief, teaching-supported process development, or a combination. Include the work the facility will not accept. A clear boundary prevents the RFQ from becoming an accumulation of unrelated options.

The mission should also state how the tool will be operated. Some facilities train qualified users for independent access; others reserve advanced recipes for staff-assisted work. The University of Illinois Materials Research Laboratory, for example, describes both user training and staff-assisted work in its shared cleanroom. That is not a universal operating prescription, but it shows why staffing and access mode belong in the equipment decision rather than being postponed until installation.

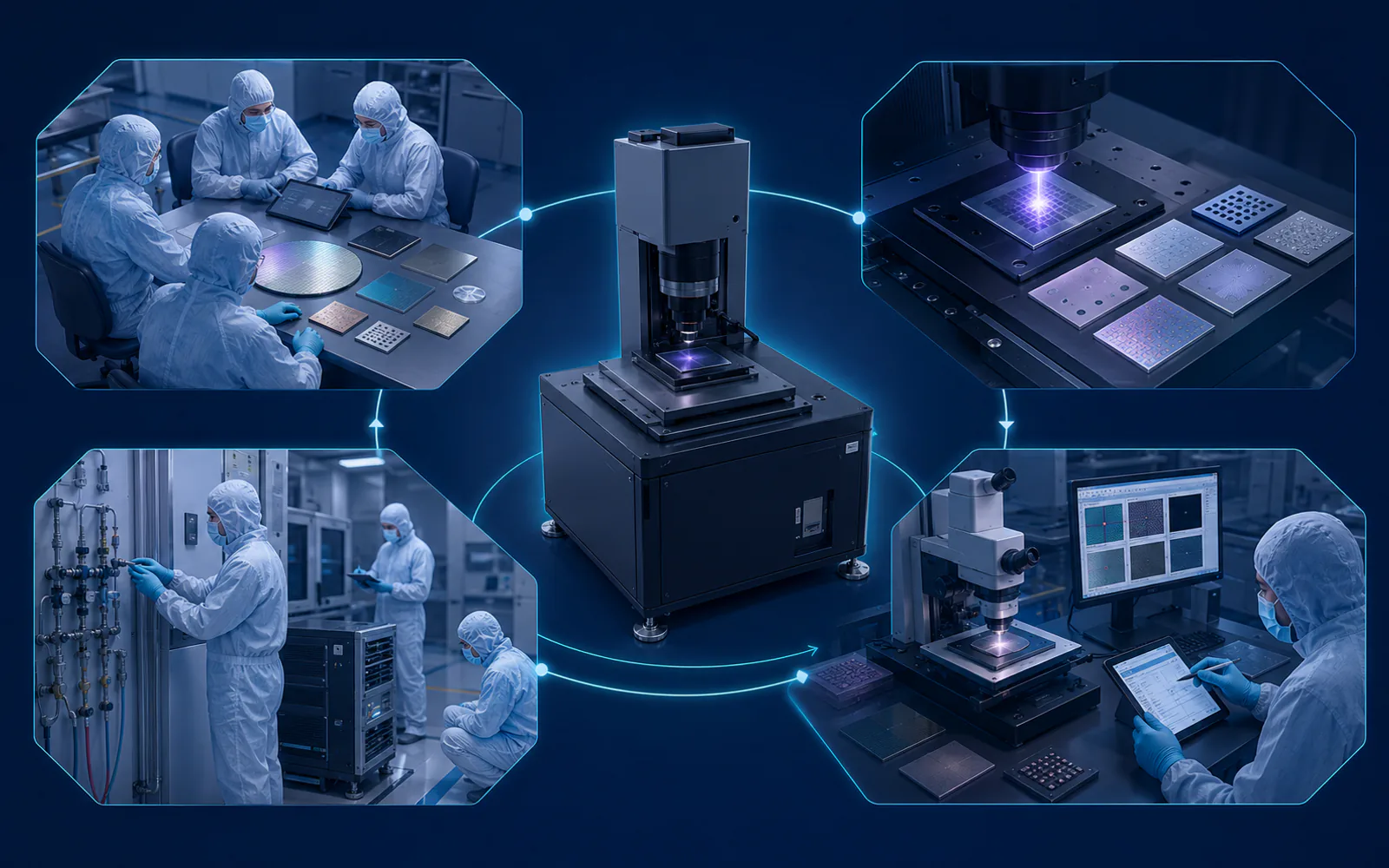

Translate research demand into job classes

Do not ask prospective users only whether they would use a maskless writer. Ask for a representative process. For each project, record substrate material and size, sample thickness, resist family and thickness, exposure wavelength constraints, minimum geometry, patterned area, layer count, alignment strategy, topography, expected design revisions and downstream processing. Separate firm needs from aspirational work so the procurement committee can see which requirements are shared and which are exceptional.

Group the answers into three to six job classes. A microfluidic master may prioritize rapid layout changes and moderately large patterned areas. A photonics project may care more about overlay, field placement or grayscale profiles. A MEMS process may combine thick resist, alignment and nonstandard sample thickness. A semiconductor research group may require repeatable handling and documented process transfer. These examples are starting points; the RFQ should use the institution's actual substrates and recipes.

For every job class, define a minimum viable workflow and a stretch workflow. The minimum case must be satisfied by the quoted configuration. The stretch case may justify an option or a later upgrade, but it should not silently determine the base award. This separation gives procurement a defensible way to compare a compact research platform with a more automated or larger-substrate platform without pretending that one model is universally better.

Specify the process result, not an isolated component

Texas Instruments describes DLP lithography as programmable light steering that directly exposes digital patterns onto photoresist without a contact mask. It also notes that the appropriate DMD and system design depend on feature size, patterning speed, form factor and wavelength. For a cleanroom buyer, this means the digital micromirror device is only one element in the result. Projection optics, illumination, focus, stage motion, alignment, data preparation, resist response and development all contribute to the patterned sample.

Write requirements at the sample level. Instead of requesting the smallest advertised feature, define a representative line-space, opening, curve, field boundary or relief structure in the intended process. State the substrate, resist, thickness, bake and development conditions. Define where the sample will be measured and which metric will be calculated. If a process is not yet mature, label the target as a development objective and ask for a proposed evaluation plan rather than a guaranteed result.

Treat throughput in the same way. A single exposure-rate number does not describe file preparation, alignment, focus mapping, field stepping, stage settling, handling or operator time. Give the supplier a representative job file and ask for a timed workflow with the included configuration. Record what is automated, what is manual and what is excluded from the timing. This produces a capacity estimate that a facility manager can use.

Close facility and EHS interfaces before award

A purchase order should not be the first time the facilities team sees the system. Give bidders a site questionnaire and request configuration-specific installation data. The review should cover equipment dimensions and mass, shipping and rigging path, service clearances, floor and vibration assumptions, electrical connections, heat rejection, compressed air or other gases, cooling, exhaust, network needs and any ancillary computer or enclosure. Do not assume that a product-family brochure describes the ordered arrangement.

Route the proposed system through the institution's environmental health and safety process. Ask the supplier to identify light sources, interlocks, motion hazards, chemical interfaces, required personal protective equipment and intended service activities. The university remains responsible for its own safety determination. The supplier response should provide the technical facts needed for that review without substituting a generic compliance label for the local assessment.

Define installation boundaries in a responsibility matrix. Identify who provides utilities, rigging, final placement, exhaust connection, network access, process materials, metrology samples and waste handling. State whether acceptance begins after mechanical installation, after process commissioning or after training. If any value remains preliminary, require a dated final site-planning package before a contractual release point.

• Final configured footprint and service envelope
• Rigging path and packaging dimensions
• Utility values and connection points
• Environmental and vibration assumptions
• Safety features and EHS information
• Buyer-versus-supplier installation responsibilities

Design the multi-user workflow before the demonstration

Shared facilities need repeatable handoffs between researchers, staff and the instrument. Ask the supplier to demonstrate file import, layer and coordinate conventions, data preprocessing, job preview, alignment setup, recipe selection, user permissions, result storage and recovery from an interrupted job. The repository-backed SENFU ZML documentation states support for DXF, GDS and BMP workflows; the RFQ should still confirm the exact import, conversion and size limits for the quoted software version.

Create at least three roles for the demonstration: facility administrator, trained independent user and staff-assisted user. Walk through which settings each role may change, how approved recipes are protected and how a job can be traced to the input file and process settings. If the institution uses a scheduling or billing platform, document whether integration is required or whether an administrative procedure will bridge the systems.

Data governance belongs in this section. Specify local or network storage, user-directory behavior, export formats, backup responsibility, software-update effects and the procedure for removing proprietary files. A university may serve external collaborators whose files require controlled access. Ask for an architecture description and administrator instructions, then let institutional IT and research-security teams decide what is acceptable.

Use one application trial for every shortlisted configuration

A controlled trial is more useful than a collection of unrelated supplier samples. Build a non-confidential test vehicle that combines the facility's common and difficult cases: representative pattern density, field edges, alignment marks, focus-sensitive regions and, if relevant, grayscale steps or curves. Provide the same source file, substrate and process definition to every bidder. If the real materials cannot be shipped, agree on a surrogate and document the limitation.

Before exposure, freeze the evaluation protocol. Record the quoted hardware, software version, objective or optical configuration, wavelength, material lot, coating and development recipe, measurement instrument, sampling locations and analysis method. NIST's traceability guidance is useful here: traceability belongs to a measurement result, and supporting it requires a documented measurement system, result, reference and uncertainty. A claim that an instrument or laboratory is simply 'NIST traceable' is not enough.

Ask for raw results as well as images prepared for a presentation. A useful package includes the source job, processed exposure file where available, recipe record, machine settings, sample map, measurement data and notes on any deviation. Review failures constructively. A supplier that identifies the limiting mechanism and proposes a controlled next test may reduce more risk than one that presents a selected image without conditions.

Write FAT and SAT as executable protocols

Factory acceptance testing should verify the agreed configuration before shipment. The protocol may include hardware and software inventory, safety-function checks, motion and alignment checks, file-workflow demonstrations and exposure of an agreed coupon. Site acceptance testing should then verify that the installed system performs under the receiving facility's conditions. The exact split depends on which tests can be transported and which rely on local utilities, process equipment or metrology.

For every acceptance item, list the test input, preparation, instrument settings, sample location, measurement method, calculation, pass criterion, record to be delivered and person authorized to sign. Define how measurement uncertainty and equipment status will be documented when they affect the decision. Also define the response to a failure: correction, repeat, agreed deviation or another contractual remedy. Ambiguity at this stage creates schedule pressure after delivery.

Include document acceptance. Require the final as-built configuration list, operating instructions, administrator guide, maintenance schedule, safety information, utility drawing, software and license record, backup or recovery procedure, training record and acceptance data package. Attach revision identifiers. A shared facility depends on these records when staff change or when a new user needs a defensible recipe history.

• Quoted configuration verified
• Safety and interlock checks recorded
• Application coupon executed
• Measurement method and pass rule applied
• Deviations closed or formally accepted
• Final document set received and revision controlled

Compare lifecycle responsibility, not only capital price

Ask each bidder to separate the base system, required options, installation, commissioning, training, acceptance support, freight, taxes or duties where applicable, software, licenses, service coverage and recommended consumables or spares. The RFQ should state the commercial terms the institution requires, but it should not assume a warranty length, response time or spare-parts commitment that has not been quoted. Make every commitment explicit and attach it to the final configuration.

Build an operating model with the facility manager. Estimate staff time for user qualification, recipe development, preventive maintenance, issue triage and data administration. Identify which tasks a trained facility engineer may perform and which require supplier service. Ask what remote diagnostics involve and what data would leave the institution. Confirm the escalation route, service access constraints and procedure for software or hardware changes that could affect qualified processes.

Training should be role-based and outcome-based. Specify administrator, operator and maintenance audiences; expected class size; training materials; practical exercises; and how later staff can be trained. A completion certificate alone does not prove independent operation. An effective handoff demonstrates that the receiving team can load a controlled job, run an approved process, recognize alarms, protect recipes and collect the acceptance records.

Route the requirement to the appropriate SENFU platform

SENFU's source-backed ZML family provides three routes for discussion. ZML10A is positioned as a compact laboratory R&D platform with documented 2D and 8-bit grayscale capability. ZML100A adds active autofocus and advanced alignment functions. ZML200A addresses projects requiring substrates up to 8 inches. These are product-family distinctions, not a recommendation based on institution type alone.

Use the demand sheet to decide which route deserves evaluation. Small samples and frequent design changes may point toward a compact configuration. Topography, multilayer work or demanding operator handoffs may increase the value of focus and alignment functions. Larger substrates require a review of the working area, handling, process uniformity and facility footprint. In every case, verify the exact quoted model, optical configuration, software, options and acceptance scope against the representative jobs.

If critical nanoscale features dominate the research program, a DMD maskless system may not be the only tool to evaluate. SENFU also supplies the ZEL304G electron-beam lithography route, and some facilities may assign broader microscale patterns to optical direct write while reserving EBL for critical nanoscale structures. The correct architecture follows the device process, utilization plan and available staff expertise.
